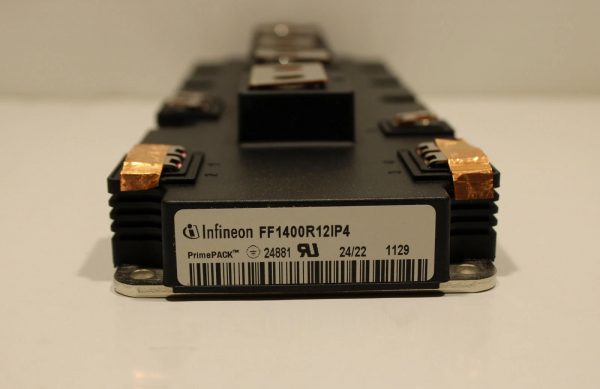

ABB Infineon FF1400R12IP4 IGBT Module Kit 技术参数及中英文介绍
1. 产品概述 (Product Overview)
英文 (English):
The ABB Infineon FF1400R12IP4 IGBT Module Kit is a high-performance power semiconductor module designed for industrial and energy applications. It combines advanced IGBT (Insulated Gate Bipolar Transistor) technology with a robust mechanical design, making it suitable for high-power converters, motor drives, and renewable energy systems.
中文 (Chinese):
ABB 英飞凌 FF1400R12IP4 IGBT 模块套件是一款高性能功率半导体模块，专为工业和能源应用设计。它将先进的 IGBT（绝缘栅双极型晶体管）技术与坚固的机械设计相结合，适用于大功率变频器、电机驱动和可再生能源系统。
2. 关键技术参数 (Key Technical Specifications)
| 参数 (Parameter) | 描述 (Description) |
|---|---|
| 型号 (Model) | FF1400R12IP4 |
| 额定电压 (Rated Voltage) | 1200 V DC |
| 额定电流 (Rated Current) | 1400 A |
| 集电极-发射极饱和电压 (Vce(sat)) | 2.05 V (典型值, Tc=25°C) （2.05 V (typical, Tc=25°C)） |
| 开关时间 (Switching Times) | 开启时间 (Ton): 0.21 μs 关断时间 (Toff): 0.97 μs |
| 热阻 (Thermal Resistance) | 结壳热阻 (Rth(j-c)): 0.0195 K/W |
| 封装 (Package) | PrimePACK™ 3 |
| 电路结构 (Circuit Configuration) | 半桥 (Half-bridge) |
| 功率耗散 (Power Dissipation) | 7650 W |
| 工作温度范围 (Operating Temperature Range) | -40°C 至 +150°C |
| 绝缘电压 (Isolation Voltage) | 4 kV AC (1 分钟) （4 kV AC (1 minute)） |
| 爬电距离和电气间隙 (Creepage & Clearance) | 高爬电距离和电气间隙，满足工业标准 （High creepage and clearance distances, meeting industrial standards） |
| 认证 (Certifications) | UL, RoHS 兼容 （UL, RoHS compliant） |
3. 功能特点 (Key Features)
英文 (English):
- High Power Density: Designed for high-power applications with a compact and efficient design.
- Low Vce(sat): Ensures low conduction losses, improving overall system efficiency.
- Fast Switching: Optimized switching times reduce switching losses and electromagnetic interference (EMI).
- Robust Design: High thermal cycling capability and mechanical stability for harsh industrial environments.
- Integrated NTC Thermistor: Provides real-time temperature monitoring for enhanced reliability.
- PrimePACK™ 3 Package: Offers excellent thermal management and ease of assembly.
中文 (Chinese):
- 高功率密度 (High Power Density): 紧凑高效的设计，适用于大功率应用。
- 低 Vce(sat) (Low Vce(sat)): 确保低导通损耗，提升系统整体效率。
- 快速开关 (Fast Switching): 优化的开关时间减少开关损耗和电磁干扰 (EMI)。
- 坚固设计 (Robust Design): 高热循环能力和机械稳定性，适用于苛刻的工业环境。
- 集成 NTC 热敏电阻 (Integrated NTC Thermistor): 提供实时温度监控，增强可靠性。
- PrimePACK™ 3 封装 (PrimePACK™ 3 Package): 提供出色的热管理和易于组装的设计。
4. 应用领域 (Applications)
英文 (English):
- Industrial Motor Drives: Used in high-power motor control systems for pumps, fans, and compressors.
- Renewable Energy: Ideal for solar inverters, wind turbine converters, and energy storage systems.
- Power Conversion: Suitable for UPS systems, traction drives, and HVDC applications.
- Oil & Gas: Supports high-power drives in drilling and pumping equipment.
- Transportation: Used in electric vehicle (EV) charging stations and railway traction systems.
中文 (Chinese):
- 工业电机驱动 (Industrial Motor Drives): 用于泵、风扇和压缩机的高功率电机控制系统。
- 可再生能源 (Renewable Energy): 适用于太阳能逆变器、风力涡轮机变频器和储能系统。
- 电力转换 (Power Conversion): 适用于 UPS 系统、牵引驱动和高压直流 (HVDC) 应用。
- 石油与天然气 (Oil & Gas): 支持钻井和泵送设备中的高功率驱动。
- 交通运输 (Transportation): 用于电动汽车 (EV) 充电站和铁路牵引系统。
5. 优势 (Advantages)
英文 (English):
- High Efficiency: Low conduction and switching losses reduce energy consumption and operating costs.
- Reliability: Designed for long-term operation in harsh environments with minimal maintenance.
- Scalability: Supports modular designs for scalable power systems.
- Global Support: ABB and Infineon’s extensive service network ensures rapid response and technical assistance.
中文 (Chinese):
- 高效率 (High Efficiency): 低导通和开关损耗减少能耗和运营成本。
- 可靠性 (Reliability): 专为苛刻环境中的长期运行设计，维护需求低。
- 可扩展性 (Scalability): 支持模块化设计，适用于可扩展的电力系统。
- 全球支持 (Global Support): ABB 和英飞凌广泛的服务网络确保快速响应和技术支持。
6. FF1400R12IP4总结 (Conclusion)
英文 (English):
The ABB Infineon FF1400R12IP4 IGBT Module Kit is a reliable and high-performance solution for demanding industrial and energy applications. Its advanced features, combined with robust design and high power density, make it an ideal choice for modern power electronics systems.
中文 (Chinese):
ABB 英飞凌 FF1400R12IP4 IGBT 模块套件是一款可靠且高性能的解决方案，适用于苛刻的工业和能源应用。其先进功能、坚固设计和高功率密度使其成为现代电力电子系统的理想选择。
备注 (Note):
- 如需更详细的技术文档或定制化配置，请联系 ABB 或 Infineon 官方技术支持或授权经销商。
- 产品参数可能因版本更新而变化，建议以最新官方发布为准。
For detailed technical documentation or customized configurations, please contact ABB or Infineon’s official technical support or authorized distributors.
Product specifications may vary with updates; refer to the latest official releases for accuracy.
