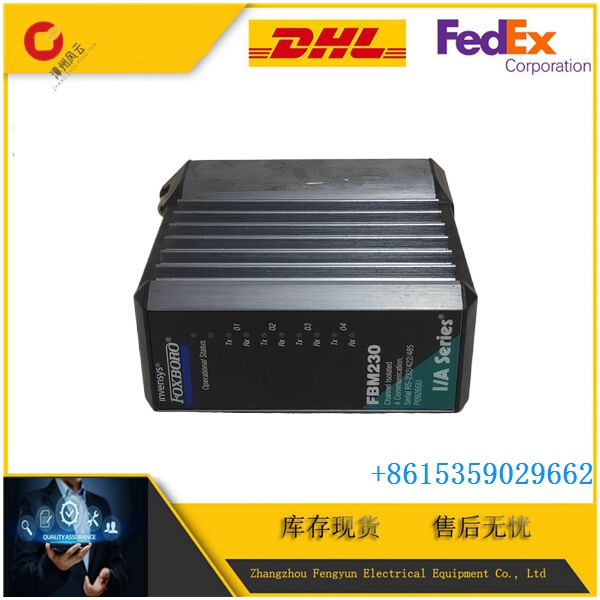

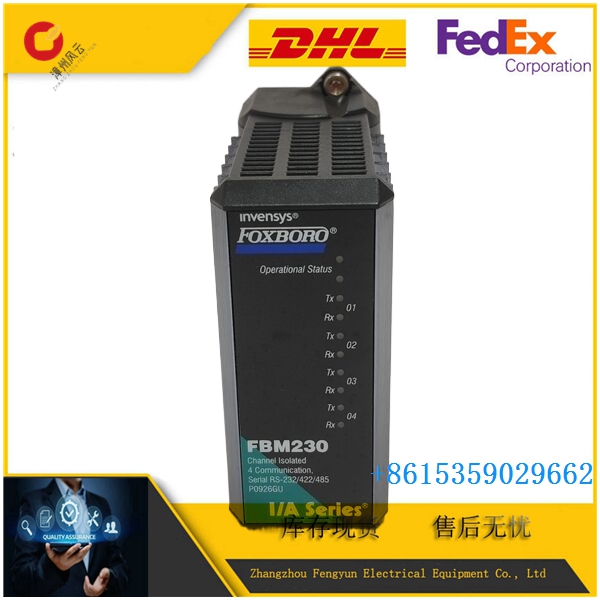

FOXBORO P0926GU FBM230 模块的技术参数如下：
一、 P0926GU FBM230 基本规格
- 品牌与型号：FOXBORO P0926GU FBM230
- 类型：分布式控制系统（DCS）模块
- 产地：瑞士
- 防护等级：IP20（开放式设计）
- 安装方式：机柜构建模块
- 应用领域：工业自动化、过程控制、电力、制造业等
二、 P0926GU FBM230 电气参数
- 电源
- 输入电压：24V DC
- 电流范围：100-400A（具体应用需参考模块配置）
- 输出参数
- 输出电流（正常应用）：9.7A
- 输出电流（轻过载应用）：8.8A
- 视在功率输出：6.7 kVA
- 效率等级：IE2
- 待机损耗：8W
- 相数与频率
- 相数：3相
- 频率：50/60 Hz
三、 P0926GU FBM230 接口与通信
- 模拟输入/输出
- 模拟输入通道：2个
- 模拟输出通道：1个
- 数字输入/输出
- 数字输入通道：5个
- 数字输出通道：1个
- 通信协议
- 支持MODBUS协议
- 通信接口：以太网、RS-232、RS-422、RS-485（多串口支持）
四、 P0926GU FBM230 物理规格
- 净重：1.8千克
- 尺寸：
- 净深：217毫米
- 净高：344毫米
- 净长：217毫米
- 净宽：132毫米
五、功能特性
- 控制功能
- 内置PID控制器和泵/风扇控制（PFC）功能
- 可根据压力、流量等外部数据变化调整驱动器性能
- 高精度测量
- 支持高精度模拟信号采集，适用于温度、压力、流量等连续变量的监测
- 多通道支持
- 多个模拟输入通道，可同时连接多个传感器
- 实时数据处理
- 数据滤波、平均、采样等实时处理能力
- 报警与通知
- 异常情况报警及通知功能
六、环境与可靠性
- 适用环境：工业环境
- 可靠性：高可靠性设计，适用于恶劣工况
- 防护设计：隔离设计，提高系统可靠性
七、应用场景
- 工业自动化：生产线监控、设备控制
- 过程控制：化工、石油、天然气等行业的关键参数监测
- 电力系统：电网状态监测、电力分配控制
- 制造业：生产线设备状态监测、生产任务执行
- 环境监测：温度、湿度、压力等参数监测
- 建筑自动化：照明、通风、安全系统控制
The technical parameters of FOXBORO P0926GU FBM230 module are as follows:
1、 Basic specifications
Brand and Model: FOXBORO P0926GU FBM230
Type: Distributed Control System (DCS) module
Origin: Switzerland
Protection level: IP20 (open design)
Installation method: Cabinet construction module
Application areas: industrial automation, process control, power, manufacturing, etc
2、 Electrical parameters
power supply
Input voltage: 24V DC
Current range: 100-400A (specific application needs to refer to module configuration)
Output parameters
Output current (normal application): 9.7A
Output current (light overload application): 8.8A
Apparent power output: 6.7 kVA
Efficiency level: IE2
Standby power consumption: 8W
Phase number and frequency
Number of phases: 3 phases
Frequency: 50/60 Hz
3、 Interface and Communication
Analog input/output
Analog input channels: 2
Analog output channel: 1
Digital input/output
Number input channels: 5
Digital output channel: 1
communication protocol
Support MODBUS protocol
Communication interfaces: Ethernet, RS-232, RS-422, RS-485 (supports multiple serial ports)
4、 Physical specifications
Net weight: 1.8 kilograms
Size:
Net depth: 217 millimeters
Net height: 344 millimeters
Net length: 217 millimeters
Net width: 132 millimeters
5、 Functional characteristics
control function
Built in PID controller and pump/fan control (PFC) function
Drive performance can be adjusted based on external data changes such as pressure and flow rate
high precision measurement
Support high-precision analog signal acquisition, suitable for monitoring continuous variables such as temperature, pressure, flow rate, etc
Multi channel support
Multiple analog input channels, capable of connecting multiple sensors simultaneously
Real time data processing
Real time processing capabilities such as data filtering, averaging, and sampling
Alarm and Notification
Abnormal situation alarm and notification function
6、 Environment and reliability
Applicable environment: Industrial environment
Reliability: High reliability design, suitable for harsh working conditions
Protection design: Isolation design to improve system reliability
7、 Application scenarios
Industrial automation: production line monitoring, equipment control
Process control: monitoring of key parameters in industries such as chemical, petroleum, and natural gas
Power system: power grid status monitoring, power distribution control
Manufacturing industry: monitoring the status of production line equipment and executing production tasks
Environmental monitoring: monitoring of temperature, humidity, pressure and other parameters
Building automation: lighting, ventilation, safety system control
