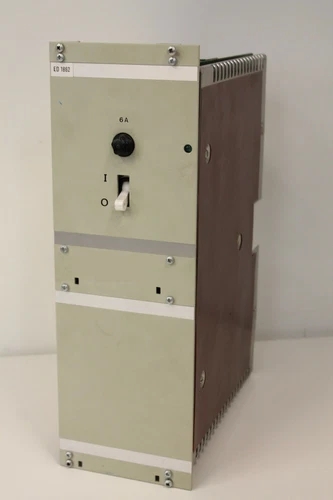

ED1862 HEDT100143R1 |ABB 电源模块

Description

ABB ED1862 HEDT100143 R1 Power Supply 技术参数及中英文介绍

1. 产品概述 / Product Overview

• 中文
  ABB ED1862 HEDT100143 R1 是一款专为工业自动化系统设计的高可靠性 电源模块，适用于 PLC、DCS、HMI 等控制设备。其紧凑设计、宽电压输入范围及多重保护功能，可确保在严苛工业环境中稳定供电，广泛应用于能源、制造、基础设施等领域。

• English
  The ABB ED1862 HEDT100143 R1 is a high-reliability power supply module designed for industrial automation systems, suitable for PLC, DCS, HMI, and other control equipment. Its compact design, wide input voltage range, and multiple protection features ensure stable power supply in harsh industrial environments, widely used in energy, manufacturing, and infrastructure sectors.

•

---

2. 关键技术参数 / Key Technical Parameters

参数项 / Parameter	规格 / Specification
输入电压范围 / Input Voltage Range	85–264 VAC（单相），120–370 VDC
输出电压 / Output Voltage	24 VDC（±1%）
输出电流 / Output Current	10 A（最大）
输出功率 / Output Power	240 W（最大）
效率 / Efficiency	≥92%（满载）
工作温度 / Operating Temperature	-25°C 至 +70°C
存储温度 / Storage Temperature	-40°C 至 +85°C
防护等级 / Protection Class	IP20（模块本体）
尺寸（宽×高×深）/ Dimensions (W×H×D)	100 mm × 125 mm × 127 mm
重量 / Weight	约 0.8 kg
认证 / Certifications	UL、CE、GL、IEC 61850-3（适用于电力自动化）
通信接口 / Communication Ports	可选 RS-485（Modbus RTU）或 PROFINET（用于远程监控）
保护功能 / Protection Features	过压保护（OVP）、欠压保护（UVP）、过流保护（OCP）、短路保护（SCP）、过温保护（OTP）

---

3. 功能特点 / Key Features

• 宽电压输入范围 / Wide Input Range
  支持 85–264 VAC 和 120–370 VDC 输入，适应不同电网条件，尤其适用于电压波动较大的工业场景。
  Supports 85–264 VAC and 120–370 VDC input, adapting to various grid conditions, especially suitable for industrial environments with significant voltage fluctuations.

• 高效率与低损耗 / High Efficiency & Low Loss
  效率 ≥92%，减少能量损耗，降低发热量，延长模块寿命。
  Efficiency ≥92%, reducing energy loss and heat generation, extending module lifespan.

• 多重保护机制 / Comprehensive Protection
  内置过压、欠压、过流、短路及过温保护，确保设备和系统安全。
  Built-in OVP, UVP, OCP, SCP, and OTP protections to ensure equipment and system safety.

• 紧凑设计 / Compact Design
  模块化设计，节省安装空间，便于集成到控制柜中。
  Modular design saves installation space and facilitates integration into control cabinets.

• 远程监控与诊断 / Remote Monitoring & Diagnostics
  可选通信接口支持远程监控，实时获取电源状态和故障信息。
  Optional communication interfaces support remote monitoring, enabling real-time status and fault information access.

• 高可靠性 / High Reliability
  MTBF（平均无故障时间）超过 500,000 小时，满足工业自动化对连续运行的要求。
  MTBF > 500,000 hours, meeting industrial automation requirements for continuous operation.

---

4. ED1862 HEDT100143R1应用场景 / Applications

• 工业自动化 / Industrial Automation
  为 PLC、DCS、HMI、传感器等设备供电，确保生产线的稳定运行。
  Powers PLC, DCS, HMI, sensors, and other equipment to ensure stable production line operation.

• 能源管理 / Energy Management
  用于风电、光伏、水电等新能源系统，以及变电站、配电房等传统电力设施。
  Used in wind, solar, and hydroelectric power systems, as well as substations and distribution rooms.

• 基础设施 / Infrastructure
  适用于交通、水处理、石油化工等领域的控制系统供电。
  Suitable for control system power supply in transportation, water treatment, petrochemical, and other sectors.

• 严苛环境 / Harsh Environments
  在高温、高湿、粉尘、振动等恶劣条件下仍能稳定工作。
  Stable operation under harsh conditions such as high temperature, humidity, dust, and vibration.

---

5. ED1862 HEDT100143R1兼容性 / Compatibility

• 支持协议 / Supported Protocols
  兼容 Modbus RTU、PROFINET、IEC 61850-3 等工业通信协议。
  Compatible with Modbus RTU, PROFINET, IEC 61850-3, and other industrial communication protocols.

• 扩展模块 / Expansion Modules
  可与 ABB 其他工业自动化产品（如 AC500 PLC、800xA DCS）无缝集成。
  Seamlessly integrates with other ABB industrial automation products, such as AC500 PLC and 800xA DCS.

• 第三方设备 / Third-Party Devices
  支持与西门子、施耐德、罗克韦尔等品牌的设备互联互通。
  Supports interconnection with devices from Siemens, Schneider, Rockwell, and other brands.

---

6. 维护与支持 / Maintenance & Support

• 故障诊断 / Fault Diagnostics
  模块内置 LED 指示灯，实时显示运行状态；通过通信接口可获取详细故障日志。
  Built-in LED indicators display real-time status; detailed fault logs accessible via communication interfaces.

• 固件升级 / Firmware Updates
  支持通过 USB 或网络方式升级固件，无需停机。
  Firmware updates via USB or network without system shutdown.

• 技术支持 / Technical Support
  ABB 提供全球技术支持服务，包括文档下载、在线培训、现场服务等。
  ABB offers global technical support, including documentation downloads, online training, and on-site services.

---

总结 / Conclusion

ABB ED1862 HEDT100143 R1 是一款专为工业自动化系统设计的 高性能、高可靠性电源模块，其宽电压输入范围、多重保护功能、高效率及紧凑设计，使其成为能源、制造、基础设施等领域的理想选择。通过与 ABB 及其他品牌的工业自动化设备无缝集成，用户可轻松实现系统的快速部署和高效运维，确保设备的稳定运行。

The ABB ED1862 HEDT100143 R1 is a high-performance, reliable power supply module designed for industrial automation systems. Its wide input range, comprehensive protection features, high efficiency, and compact design make it an ideal choice for energy, manufacturing, and infrastructure applications. Seamless integration with ABB and other industrial automation equipment enables rapid system deployment and efficient operation and maintenance, ensuring stable equipment performance.
