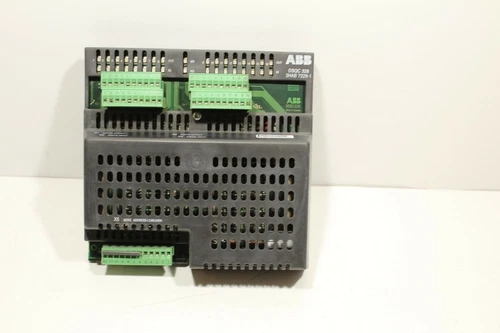

ABB DSQC328 3HAB7229-1 Digital I/O Module 技术参数及中英文介绍
1. 产品概述 (Product Overview)
中文
ABB DSQC3283HAB7229-1 是一款高性能的数字输入/输出模块，专为工业自动化系统设计，适用于机器人控制、PLC 通信和分布式 I/O 应用。该模块支持高密度数字信号处理，提供可靠的信号采集和输出功能，适用于严苛的工业环境。
English
The ABB DSQC3283HAB7229-1 is a high-performance digital input/output module designed for industrial automation systems. It is suitable for robot control, PLC communication, and distributed I/O applications. The module supports high-density digital signal processing, providing reliable signal acquisition and output functions for demanding industrial environments.
2. 主要技术参数 (Key Technical Specifications)
| 参数项 (Parameter) | 数值 (Value) |
|---|---|
| 输入/输出类型 (I/O Type) | 数字输入/输出 (Digital Input/Output) |
| 输入通道数 (Input Channels) | 16 路 (16 channels) |
| 输出通道数 (Output Channels) | 16 路 (16 channels) |
| 输入电压范围 (Input Voltage Range) | 24V DC (±10%) |
| 输出电压范围 (Output Voltage Range) | 24V DC (±10%) |
| 信号类型 (Signal Type) | PNP/NPN 可选 (Configurable as PNP/NPN) |
| 响应时间 (Response Time) | ≤1ms (输入), ≤5ms (输出) |
| 防护等级 (Protection Class) | IP20 (模块本体) |
| 安装方式 (Installation Method) | DIN 导轨安装 (DIN rail mounting) |
| 工作温度范围 (Operating Temperature) | -20°C ~ +60°C |
| 储存温度范围 (Storage Temperature) | -40°C ~ +85°C |
| 认证 (Certifications) | CE, UL, cUL, RoHS |
3. 功能特点 (Key Features)
中文
- 高密度 I/O 设计：支持 16 路输入和 16 路输出，节省控制柜空间。
- 灵活信号配置：支持 PNP 和 NPN 信号类型，兼容多种工业设备。
- 快速响应：输入响应时间 ≤1ms，输出响应时间 ≤5ms，适用于高速控制场景。
- 工业级防护：支持宽温工作范围（-20°C ~ +60°C），适应恶劣环境。
- 电气隔离：输入/输出通道电气隔离，防止干扰。
- LED 状态指示：每个通道配备 LED 指示灯，实时显示信号状态。
- 热插拔支持：支持带电插拔，便于维护和更换。
English
- High-Density I/O Design: Supports 16 inputs and 16 outputs, saving control cabinet space.
- Flexible Signal Configuration: Supports PNP and NPN signal types, compatible with various industrial devices.
- Fast Response: Input response time ≤1ms, output response time ≤5ms, suitable for high-speed control applications.
- Industrial-Grade Protection: Supports a wide operating temperature range (-20°C ~ +60°C), adapting to harsh environments.
- Electrical Isolation: Input/output channels are electrically isolated to prevent interference.
- LED Status Indication: Each channel is equipped with an LED indicator to display signal status in real time.
- Hot-Swap Support: Supports hot-swapping for easy maintenance and replacement.
4. 电气参数 (Electrical Parameters)
| 参数项 (Parameter) | 数值 (Value) |
|---|---|
| 输入电流 (Input Current) | ≤5mA (每通道) |
| 输出电流 (Output Current) | 0.5A (每通道) |
| 绝缘电阻 (Insulation Resistance) | ≥100MΩ @ 500V DC |
| 耐压测试 (Dielectric Withstand Test) | 500V AC (1 分钟) |
| 功耗 (Power Consumption) | ≤5W |
5. 应用场景 (Applications)
中文
- 机器人控制：用于机器人末端的传感器信号采集和执行器控制。
- PLC 通信：作为 PLC 的分布式 I/O 模块，扩展输入/输出能力。
- 自动化生产线：用于设备状态监测、物料检测和执行器控制。
- 过程控制：在化工、食品等行业中，用于阀门控制、传感器信号采集。
- 物流系统：用于输送线、分拣设备的信号交互。
English
- Robot Control: Used for sensor signal acquisition and actuator control at the robot end.
- PLC Communication: Serves as a distributed I/O module for PLCs to expand input/output capabilities.
- Automated Production Lines: Used for equipment status monitoring, material detection, and actuator control.
- Process Control: Applied in industries such as chemicals and food for valve control and sensor signal acquisition.
- Logistics Systems: Used for signal interaction in conveyor lines and sorting equipment.
6. 注意事项 (Precautions)
中文
- 安装环境：避免潮湿、腐蚀性气体和强电磁干扰环境。
- 接线规范：严格按照产品手册连接输入/输出线路，防止短路或误接。
- 电源稳定性：确保输入电源稳定，避免电压波动导致模块损坏。
- 定期维护：定期检查 LED 指示灯状态，确保模块正常工作。
- 固件升级：如有新固件发布，及时更新以获得最新功能和性能优化。
English
- Installation Environment: Avoid humid, corrosive gas, and strong electromagnetic interference environments.
- Wiring Standards: Follow the product manual carefully when connecting input/output lines to prevent short circuits or incorrect connections.
- Power Supply Stability: Ensure a stable input power supply to avoid module damage due to voltage fluctuations.
- Regular Maintenance: Regularly check the LED indicators to ensure the module is functioning properly.
- Firmware Updates: Promptly update the firmware when new versions are released to obtain the latest features and performance optimizations.
7. 总结 (Summary)
中文
ABB DSQC3283HAB7229-1 数字输入/输出模块以其高密度 I/O 设计、快速响应和工业级防护，成为工业自动化领域的理想选择。无论是机器人控制、PLC 通信还是自动化生产线，该模块均能提供可靠的信号处理能力，确保系统的稳定运行。
English
The ABB DSQC3283HAB7229-1 digital input/output module is an ideal choice for industrial automation due to its high-density I/O design, fast response, and industrial-grade protection. Whether for robot control, PLC communication, or automated production lines, this module provides reliable signal processing capabilities to ensure stable system operation.
