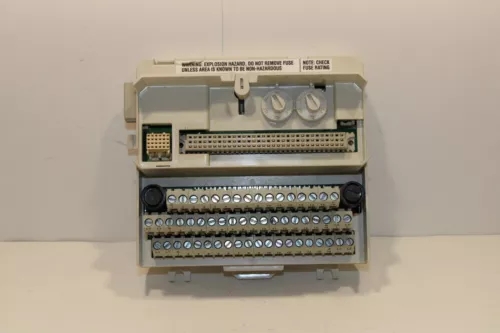

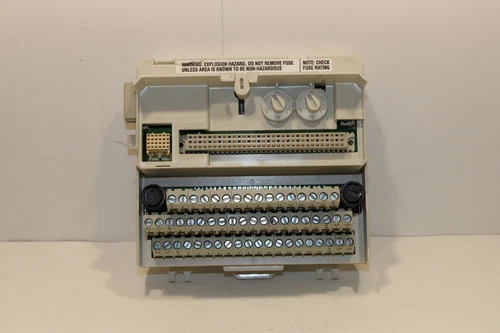

ABB TU830V1 3BSE013234R1 Terminal Base 技术参数及中英文介绍
1. 产品概述 (Product Overview)
英文 (English):
The ABB TU830V1 3BSE013234R1 Terminal Base is a modular extension unit designed for connecting ABB AC drives to fieldbus networks in industrial automation systems. It provides flexible communication interfaces, diagnostic capabilities, and reliable performance in demanding environments.
中文 (Chinese):
ABB TU830V1 3BSE013234R1 端子底座是一款模块化扩展单元，用于将 ABB AC 变频器连接到工业自动化系统的现场总线网络。它提供灵活的通信接口、诊断功能，并在苛刻环境下提供可靠性能。
2. 关键技术参数 (Key Technical Specifications)
| 参数 (Parameter) | 描述 (Description) |
|---|---|
| 型号 (Model) | TU830V1 3BSE013234R1 |
| 电源电压 (Power Supply Voltage) | 24 VDC |
| 功耗 (Power Consumption) | 5 W |
| 外壳防护等级 (Protection Class) | IP20（符合 EN60529 标准） （IP20 (compliant with EN60529)） |
| 支持的现场总线协议 (Supported Fieldbus Protocols) | PROFIBUS DP、CANopen、Modbus RTU |
| 通信速率 (Communication Speed) | 最高 12 Mbps |
| 安装方式 (Installation Method) | 柜式安装（支持 DIN 导轨或面板安装） （Cabinet mounting (supports DIN rail or panel mounting)） |
| 工作温度 (Operating Temperature) | -20°C 至 +60°C |
| I/O 通道 (I/O Channels) | 最多支持 16 个数字输入/输出通道（需配合扩展模块） （Up to 16 digital I/O channels (requires expansion modules)） |
| 诊断功能 (Diagnostic Functions) | 内置故障检测、通信状态监控 （Built-in fault detection, communication status monitoring） |
| 认证 (Certifications) | CCC、CE、符合 IEC 61131-3 标准 （CCC, CE, compliant with IEC 61131-3） |
3. 功能特点 (Key Features)
英文 (English):
- Flexible Communication: Supports multiple fieldbus protocols (PROFIBUS DP, CANopen, Modbus RTU) with a communication speed of up to 12 Mbps.
- Modular Design: Allows seamless integration with ABB AC drives and other automation components.
- Diagnostic Capabilities: Provides real-time fault detection and communication status monitoring to enhance system reliability.
- Easy Installation: Supports DIN rail or panel mounting for quick deployment in industrial cabinets.
- Wide Temperature Range: Designed for operation in harsh environments (-20°C to +60°C).
中文 (Chinese):
- 灵活通信 (Flexible Communication): 支持多种现场总线协议（PROFIBUS DP、CANopen、Modbus RTU），通信速率高达 12 Mbps。
- 模块化设计 (Modular Design): 可与 ABB AC 变频器及其他自动化组件无缝集成。
- 诊断功能 (Diagnostic Capabilities): 提供实时故障检测和通信状态监控，提升系统可靠性。
- 易于安装 (Easy Installation): 支持 DIN 导轨或面板安装，便于在工业机柜中快速部署。
- 宽温范围 (Wide Temperature Range): 专为苛刻环境设计，工作温度范围为 -20°C 至 +60°C。
4. 应用领域 (Applications)
英文 (English):
- Industrial Automation: Integration with ABB AC drives for motor control and process automation.
- Building Automation: Connectivity to HVAC systems, lighting controls, and energy management systems.
- Renewable Energy: Communication interface for wind turbines, solar inverters, and energy storage systems.
- Transportation: Control systems for elevators, escalators, and electric vehicle charging stations.
中文 (Chinese):
- 工业自动化 (Industrial Automation): 与 ABB AC 变频器集成，用于电机控制和过程自动化。
- 楼宇自动化 (Building Automation): 连接 HVAC 系统、照明控制和能源管理系统。
- 可再生能源 (Renewable Energy): 作为风力发电机、太阳能逆变器和储能系统的通信接口。
- 交通运输 (Transportation): 用于电梯、自动扶梯和电动汽车充电站的控制系统中。
5. TU830V1 3BSE013234R1 优势 (Advantages)
英文 (English):
- High Reliability: Robust design ensures stable operation in industrial environments.
- Cost-Effective: Reduces system complexity and maintenance costs through modular integration.
- Scalability: Supports future expansion with additional I/O modules and communication interfaces.
- Global Support: ABB’s extensive service network provides technical assistance and spare parts availability.
中文 (Chinese):
- 高可靠性 (High Reliability): 坚固设计确保在工业环境中稳定运行。
- 成本效益 (Cost-Effective): 通过模块化集成降低系统复杂性和维护成本。
- 可扩展性 (Scalability): 支持通过扩展 I/O 模块和通信接口实现未来升级。
- 全球支持 (Global Support): ABB 广泛的服务网络提供技术支持和备件供应。
6. 总结 (Conclusion)
英文 (English):
The ABB TU830V1 3BSE013234R1 Terminal Base is a versatile and reliable solution for connecting ABB AC drives to fieldbus networks. Its modular design, flexible communication options, and diagnostic capabilities make it an ideal choice for industrial automation, building automation, and renewable energy applications.
中文 (Chinese):
ABB TU830V1 3BSE013234R1 端子底座是一款多功能且可靠的解决方案，用于将 ABB AC 变频器连接到现场总线网络。其模块化设计、灵活通信选项和诊断功能使其成为工业自动化、楼宇自动化和可再生能源应用的理想选择。
备注 (Note):
- 如需更详细的技术文档或定制化配置，请联系 ABB 官方技术支持或授权经销商。
- 产品参数可能因版本更新而变化，建议以最新官方发布为准。
For detailed technical documentation or customized configurations, please contact ABB’s official technical support or authorized distributors.
Product specifications may vary with updates; refer to the latest official releases for accuracy.
